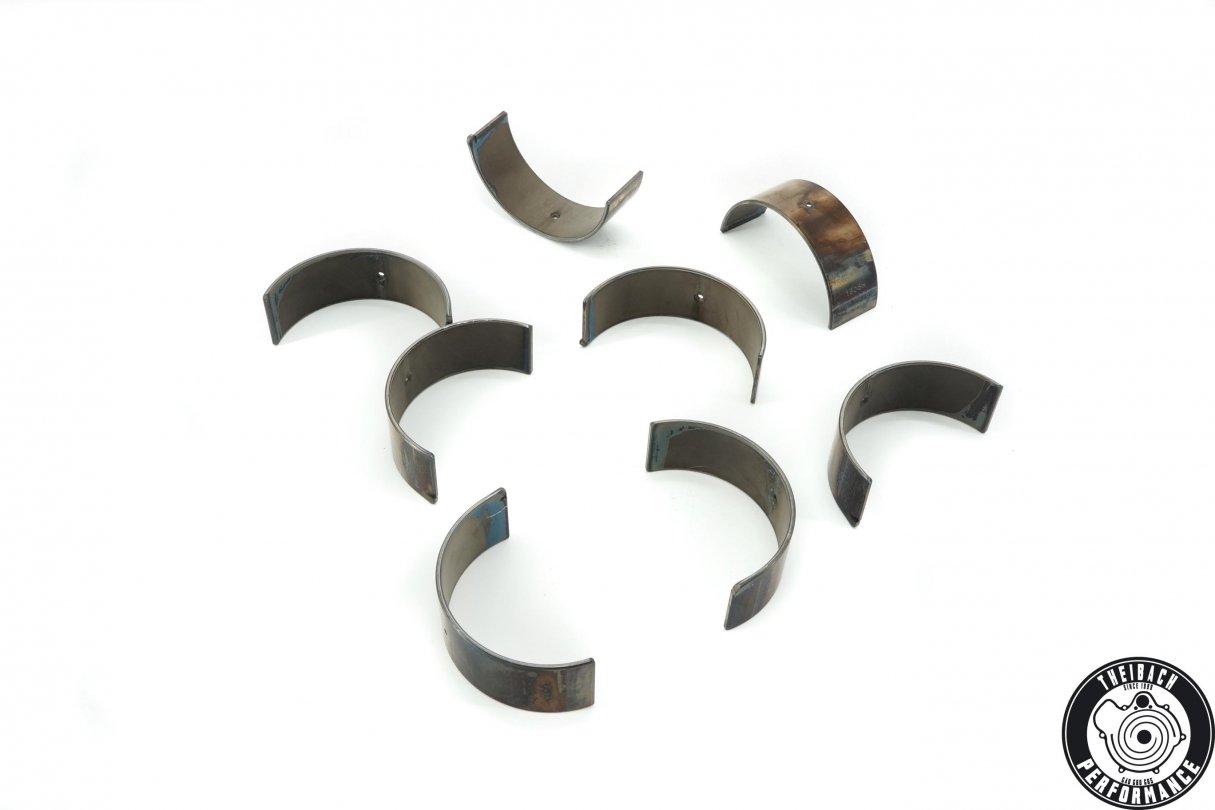

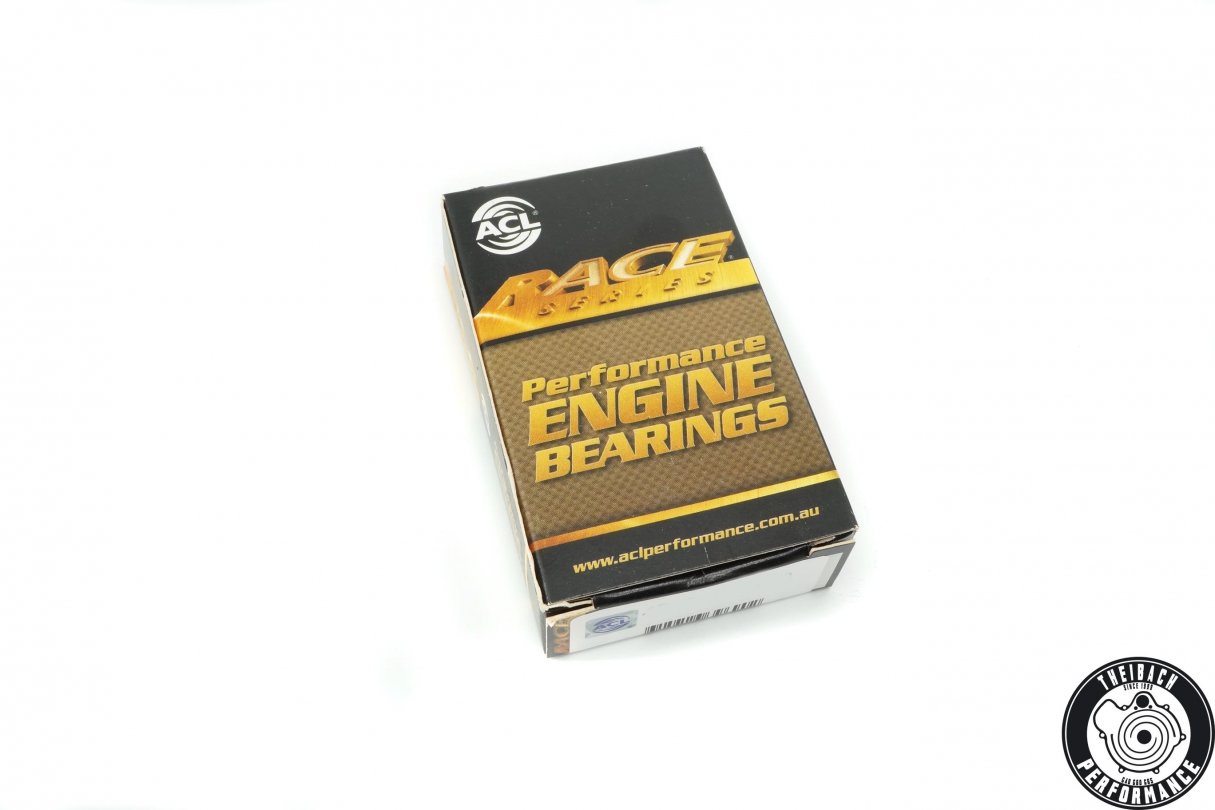

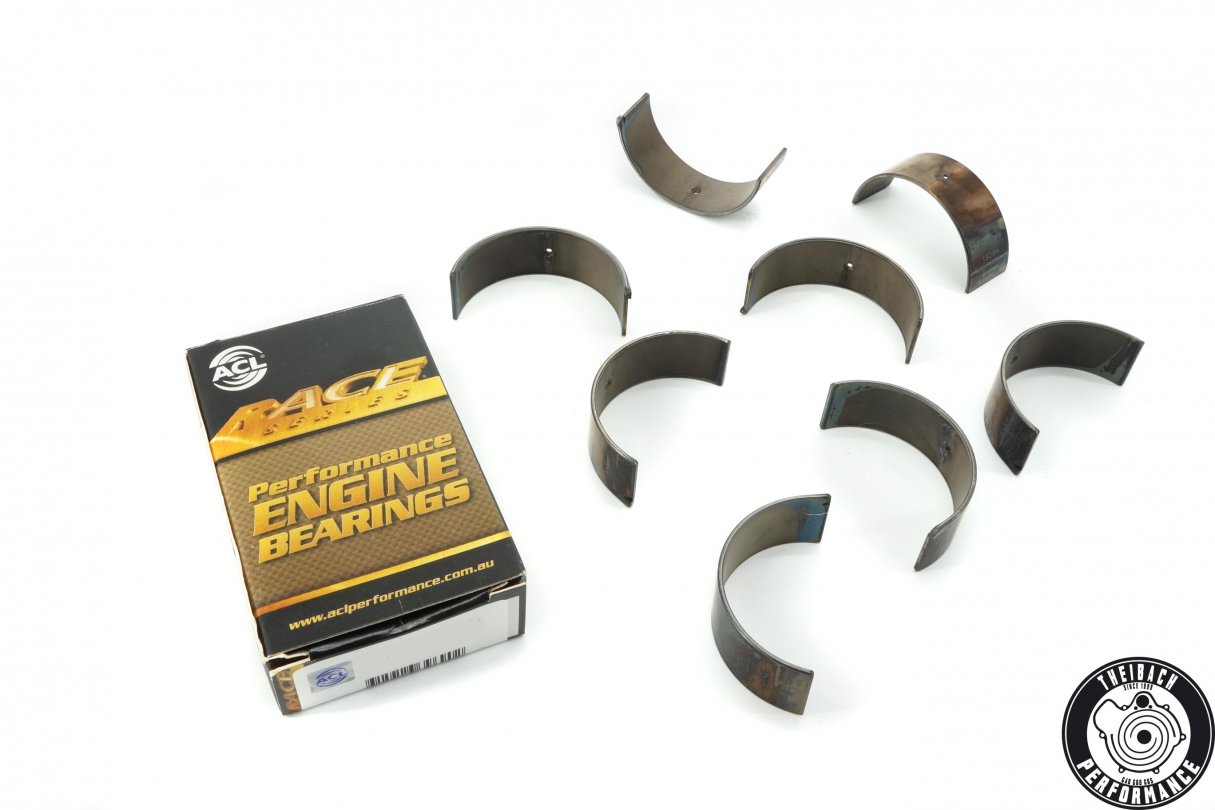

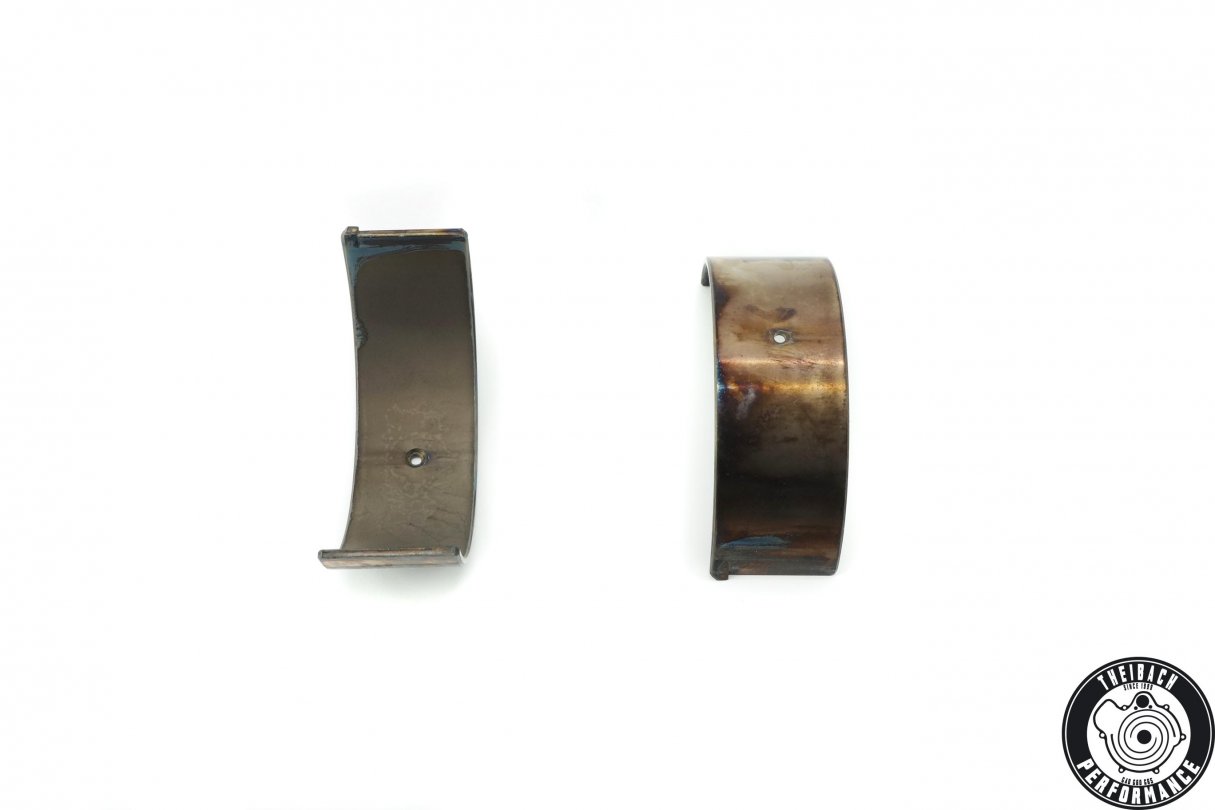

The 4 fabric connecting rod bearing shells from ACL are used in engines where the speed is increased, the boost pressure is increased, increased compression, or generally in engines with high oil temperatures, such as the G60 engine.
The installation of ACL Peuel bearing shells significantly reduces the risk of bearing damage and therefore also the risk of damage to the connecting rod and crankshaft.
ACL RACE 4 fabric bearings:1. lead, tin, copper, sliding layer for increased continuous load
2. nickel barrier layer
3. copper lead lining
4. hardened steel backing
Technical details:
for shaft diameters from [mm] 47.758
up to shaft diameter [mm] 47.778
for housing diameters from [mm] 50,600
up to casing diameter [mm] 50.612
Thickness [mm] 1.405
width [mm] 19.000
for bearing clearance from [mm] 0.020
up to bearing clearance [mm] 0.924
Bearing shells with oil bore
The bearing shells are for standard dimensions
