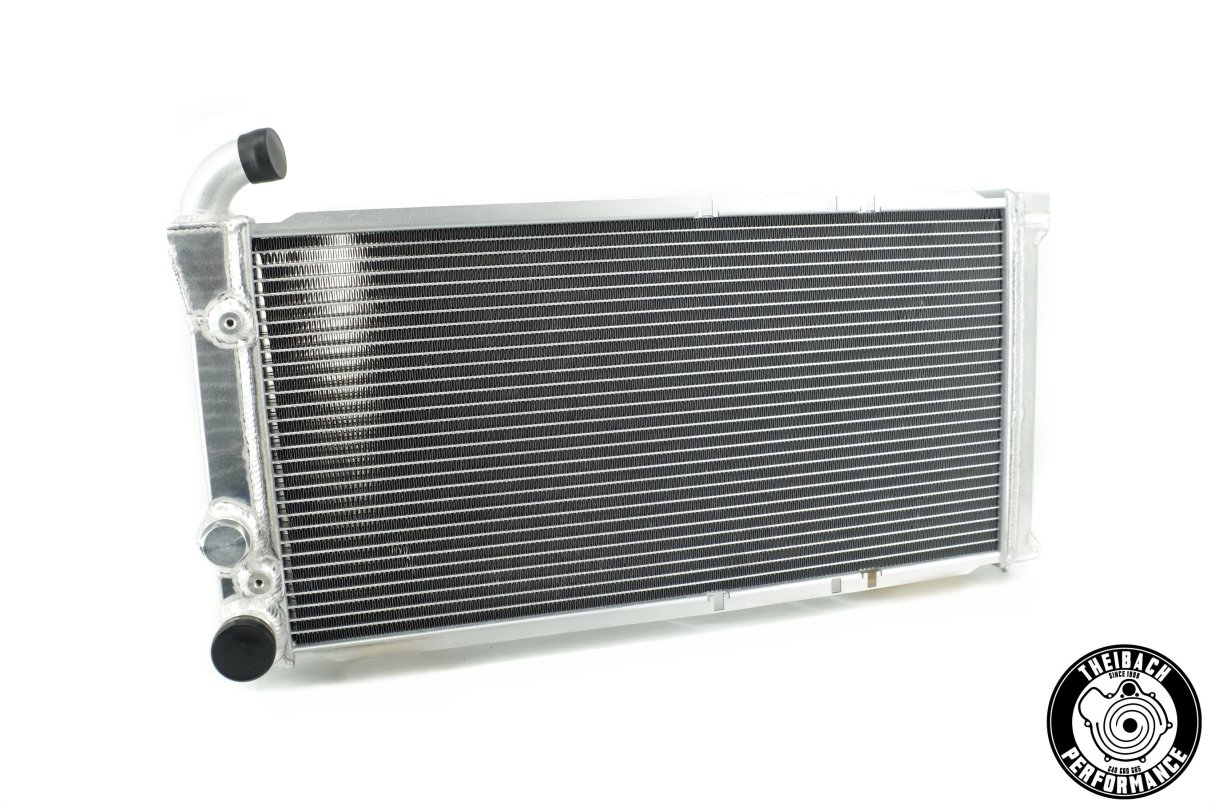

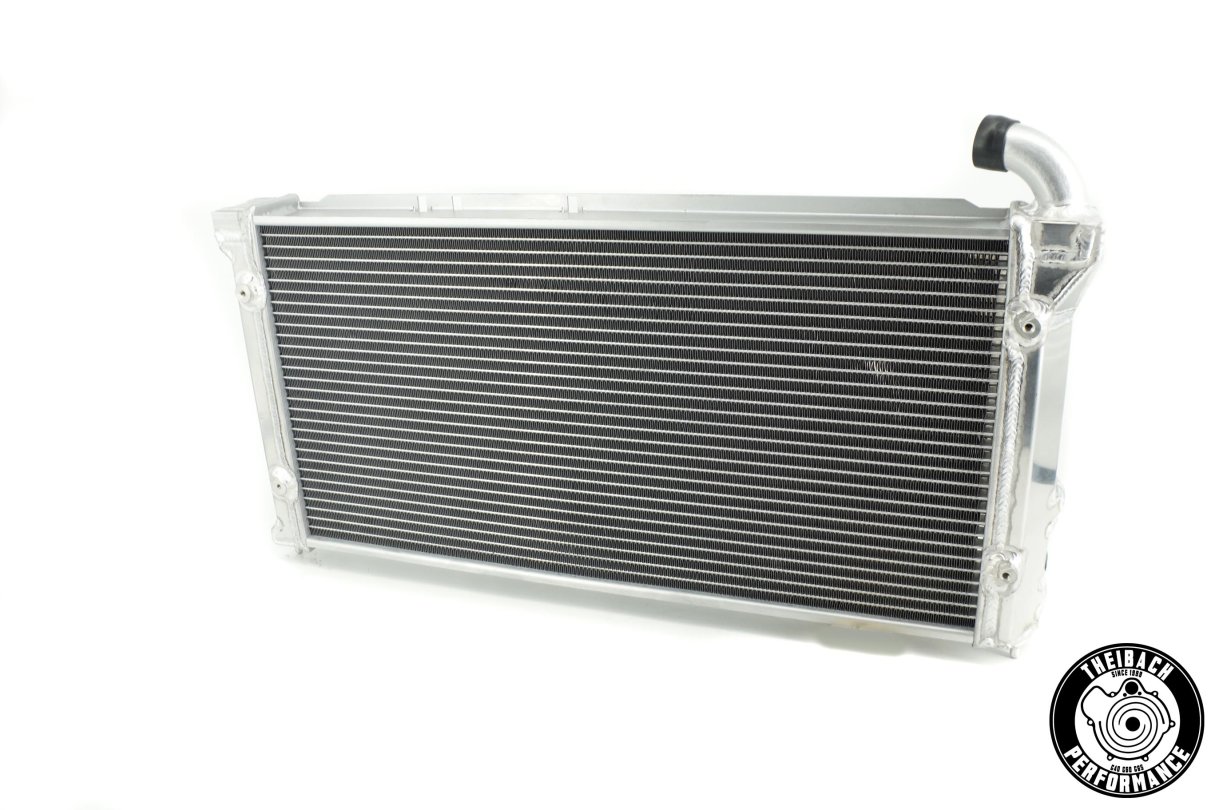

Water Cooler for the Golf G60 (without air conditioning)

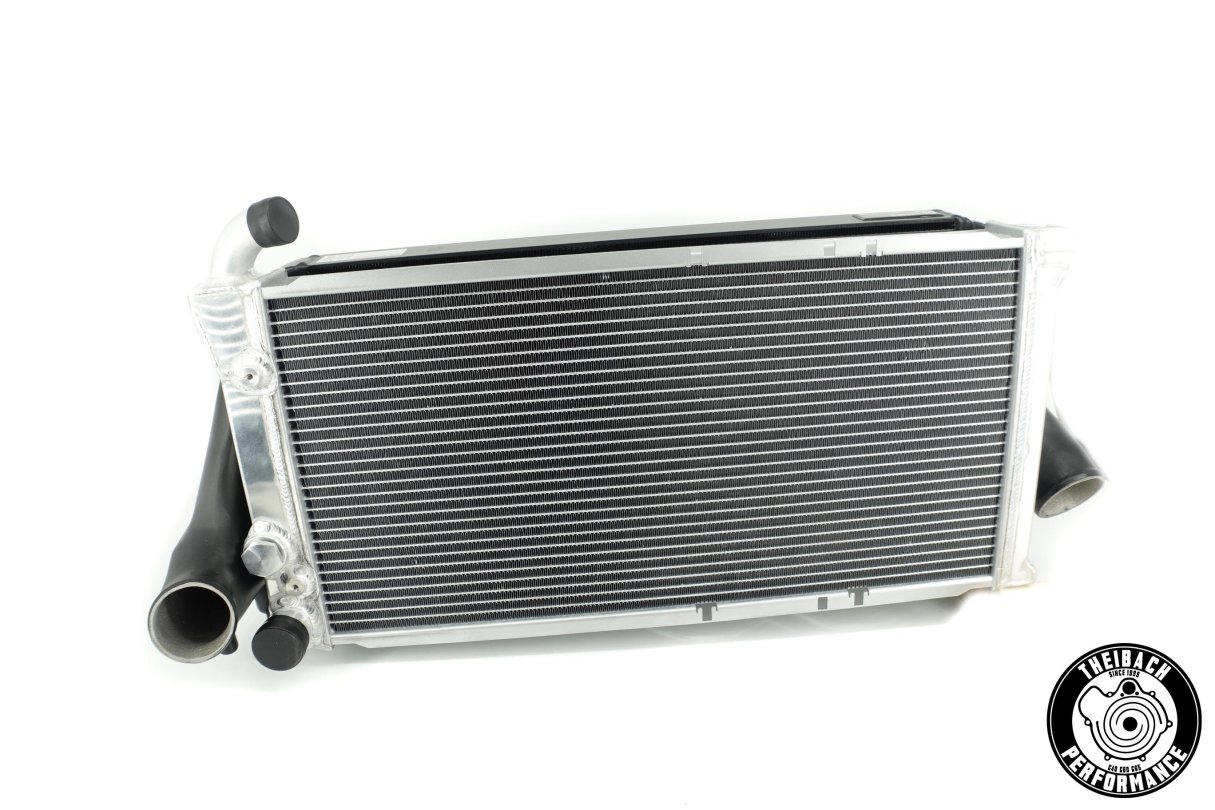

The water cooler fits behind the original or Wagner intercooler
A special aluminum alloy improves efficiency. The cooler features a 3-core design that ensures maximum heat dissipation while maintaining the highest possible airflow.
The original fan housing and fan can still be used.
Core dimensions: 580 x 317 x 52 mm
Overall dimensions: 680 x 390 x 112 mm
The mounting tabs used to secure the intercooler to the top of the lock carrier must be adjusted accordingly. This adjustment allows the intercooler assembly to be tilted forward as far as possible beneath the lock carrier. Please note that a G60 lock carrier is required for this.

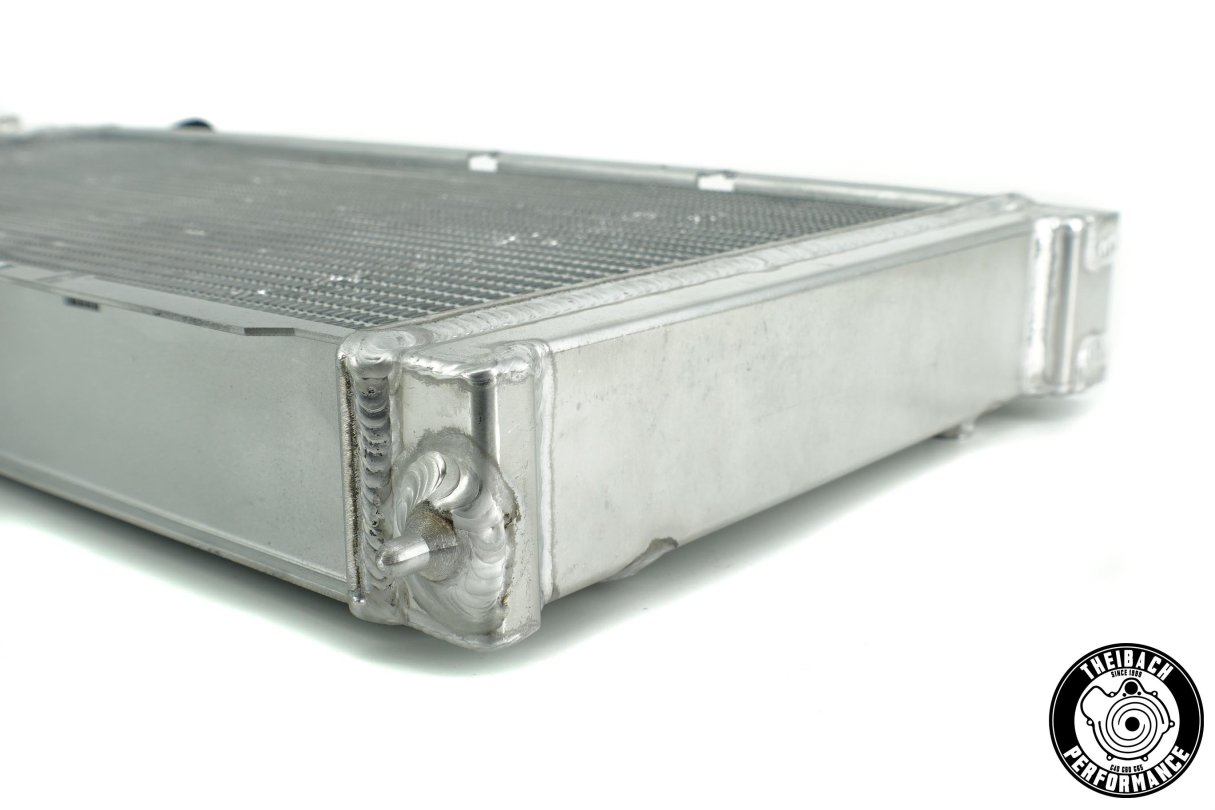

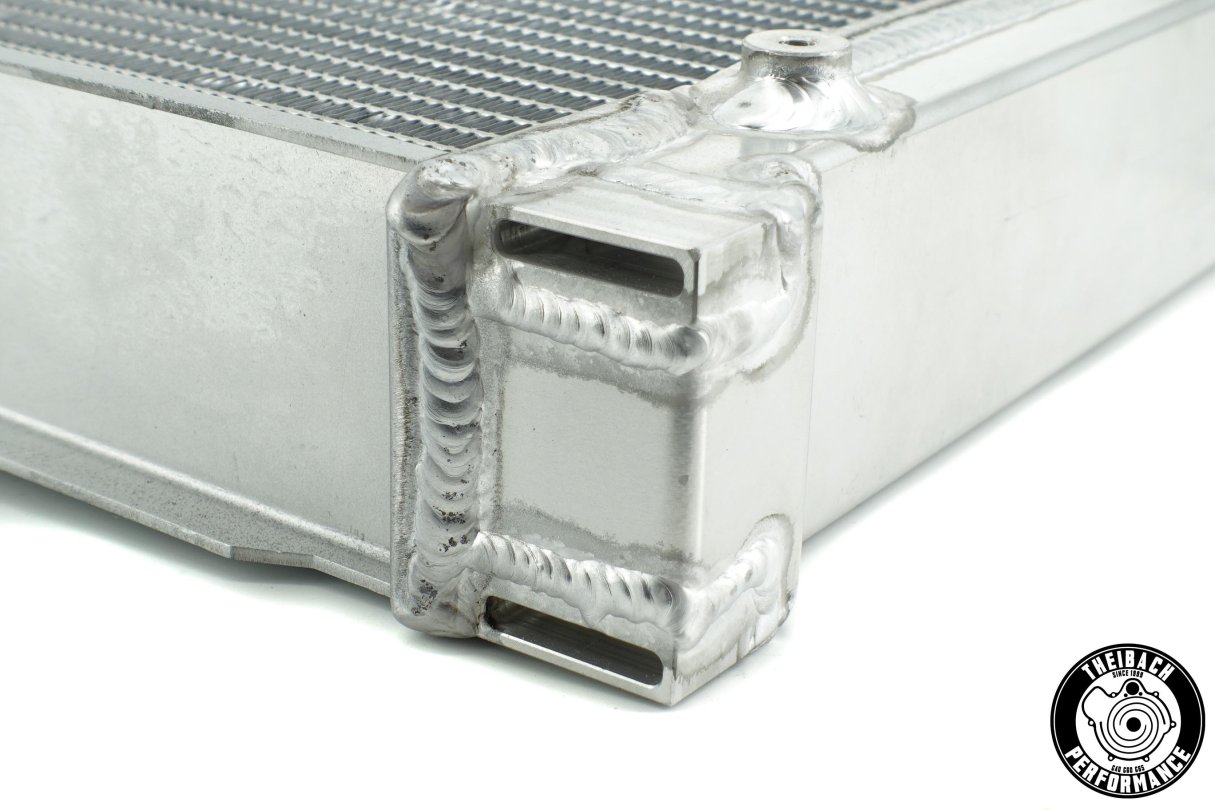

(The intercooler shown in Figures 7 and 8 is not included. It can be purchased separately under part number g60-079)
